- Place of Origin: china,shandong
- Brand Name: OBT
- Model Number: OBTA13
1, Type:
American type axles;
Germany type axles;
Spoke axle;
Low-loader axles;
Full drop axle;
Agriculture axles;
Disc brake axles.
2, Loading capacity:
varies from 5 ton to 20 ton.

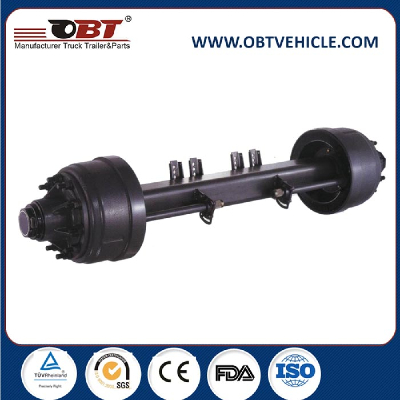

3, Semi Trailer American Axle Specification:
Max.Capacity | 13/15/16 tons or 12/14/16 tons |
"S" cam brake series Diameter*Width | 420*180mm |
Truck axle track TR | 18201840/1850mm |
Axle spring seat installation | 455mm max |
Axle beam | 127mm round |
Alxe center distance of chamer | 365mm |
Axle stud | 127 round or 150 square |
Axle PCD | 335mm or 285.75mm |
Axle total length | 2170/2185/2190mm |
Recommended wheel for axles | 8.00V-20 spoke wheel |
Optional track available;
ABS brake system can be installed;
Optional S-cam length.
5, Axle Featurers:
1.OBT axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.
2.OBT axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.
3.OBT axle spindle is connected by the by submerged -arc welding, which make the whole beam more reliable and solid.
4.OBT axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.
5.OBT axle grease lubricant is supplied by EXXON Mobile which could provide high lubricating performance and protect bearing well.
6.OBT axle brake lining is high performance, non-asbestos, non-pollution and long service life.To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.
7.OBT Axle bearing is adopted famous brand in China, with the advantages of over loading capability, High rotating speed, good intensity, abrade resistant and heat resistant.
8.OBT Axle wheel hub and brake drum use the international standard material of ball iron and gary iron separately, which has the advantages of over loading capability, abrade resistant, heat resistant and do not distort.
9.OBT axle be National Automobile Monitor and Inspe ction Center certified ,axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.
6, Company Information
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007,we merged the company CSRS for axle and suspension ,built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013,special for tires, in order to expand our business areas ,we built our branch company SCG in Singapore in 2014,and also in 2014,we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in vehicle and trailer manufacturing, axle, suspension system, Tyre , rims, landing gear and fifth wheel etc. parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell,BP,ExonMobil, Singapore Fire,Canada Fire, and Turkey moving company ,etc. We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service.
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service".
7, One-stop Service
(1),professional Production Team:
More Than 300 Experienced Workers,Provide Clients High Assembling for Fast Quality Delivery
(2),Customize:
Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
(3),7*24H Service
7*24H Service Provide Professional Fast Response
(4),Parts Support:
Abundant Parts Supply Provide Lasting Support for Worldwide Clients
(5),DDP Logistic Transport:
Deliver To Client Anywhere In The World By Best Logistic Supplier
8, FAQ
(1),Terms of payment
30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished
(2),What's your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
(3),Can you satisfy my special requirement?
Definitely! We can discuss the practicable plan and produce it as your request.
(4),What's your warranty?
All of our trailers are produced strict with ISO standard,you needn't worry about it.Certainly,if your trailer parts wear out,we can provide suitable parts for you.
