Product Details
- Size: 0.08
- Place of Origin: China
- Brand Name: OBT

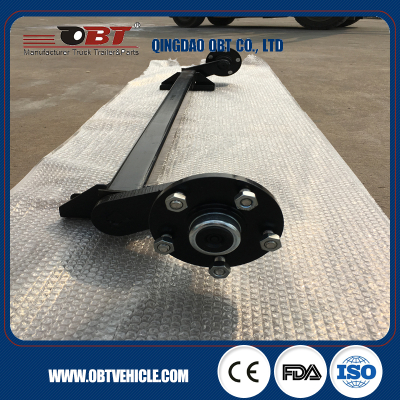

- Model Number: OBT-NW0.75
- Weight: 40.000 kg

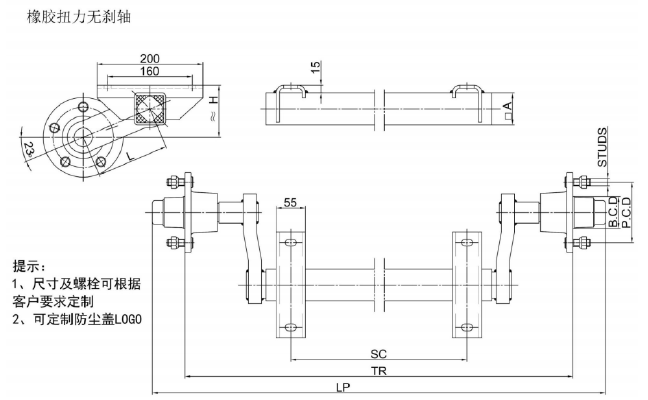

| Size | Capacity (kg) | SC (mm) | TR(mm) | LP(mm) | Axle Tube (mm) | Brake Szie | Studs | P.C.D | B.C.D | Torque arm angle | Offset center of the arm | Part Name |
| OBT-ND0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 | Torsion axle with Electric drum brake |
| OBT-ND1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | |
| OBT-ND1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12x1.5 | φ139.7 | φ64 | 23° | 160 | |
| OBT-ND2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 12" | 6-M12x1.5 | φ139.7 | φ108 | 23° | 160 | |
| OBT-NX0.5 | 500 | 1300 | 1700 | 1825 | 60x60 | 8" | 5-M12x1.5 | φ114.3 | / | 23° | 137 | Torsion axle with Mechanical drum brake |
| OBT-NX0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 8" | 5-M12x1.5 | φ114.3 | / | 23° | 137 | |
| OBT-NX1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 8" | 5-M12x1.5 | φ114.3 | / | 23° | 137 | |
| OBT-NX1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12x1.5 | φ139.7 | φ64 | 23° | 160 | |
| OBT-NX2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 10" | 6-M12x1.5 | φ139.7 | φ108 | 23° | 160 | |
| OBT-NP0.5 | 500 | 1300 | 1700 | 1825 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 | Torsion axle with Mechanical Disc brake |
| OBT-NP0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 | |
| OBT-NP1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 | |
| OBT-NP1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12x1.5 | φ114.3 | φ60 | 23° | 160 | |
| OBT-NP2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 12" | 6-M12x1.5 | φ139.7 | φ84 | 23° | 160 | |
| OBT-NYG0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 | Torsion axle with Hydraulic drum brake |
| OBT-NYG1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | |
| OBT-NYG1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12x1.5 | φ139.7 | φ64 | 23° | 160 | |
| OBT-NYG2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 10" | 6-M12x1.5 | φ139.7 | φ108 | 23° | 160 | |
| OBT-NYP0.5 | 500 | 1300 | 1700 | 1805 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | Torsion axle with Hydraulic Disc brake |
| OBT-NYP0.75 | 750 | 1300 | 1700 | 1805 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | |
| OBT-NYP1.0 | 1000 | 1300 | 1700 | 1805 | 70x70 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | |
| OBT-NYP1.5 | 1500 | 1300 | 1730 | 1835 | 80x80 | 10" | 6-M12x1.5 | φ114.3 | φ64 | 23° | 160 | |
| OBT-NYP2.0 | 2000 | 1300 | 1730 | 1835 | 90x90 | 12" | 6-M12x1.5 | φ139.7 | φ84 | 23° | 160 | |
| OBT-NW0.5 | 500 | 1300 | 1700 | 1825 | 50x50 | / | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | Torsion axle without brake |
| OBT-NW0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | / | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | |
| OBT-NW1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | / | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 | |
| OBT-NW1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | / | 6-M12x1.5 | φ114.3 | φ64 | 23° | 160 | |
| OBT-NW2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | / | 6-M12x1.5 | φ139.7 | φ84 | 23° | 160 |
